Workshop GLSL - Gradient - Chapter 2 - Colors

Explanations
Now let’s blend colors.
#define PROCESSING_COLOR_SHADER
uniform vec2 resolution;
void main( void ) {
vec2 position = gl_FragCoord.xy / resolution.xy;
float v = position.x;
Let’s choose two colors : red and yellow
vec3 colorA = vec3(1.0, 0.0, 0.0);
vec3 colorB = vec3(1.0, 1.0, 0.0);
We then mix them up with our gradient value
vec3 color = mix(colorA, colorB, v);
And set it as the screen color (again, with full opcacity)
gl_FragColor = vec4(color, 1.0);
}

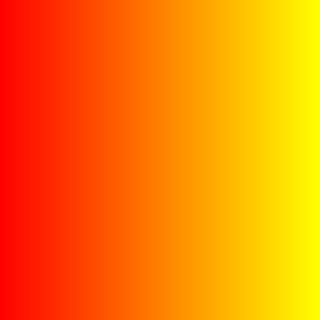

As expected, we have a nice gradient from red (left) to yellow (right) throw Orange at middle screen.
Full Code Source
#define PROCESSING_COLOR_SHADER
uniform vec2 resolution;
void main( void ) {
vec2 position = gl_FragCoord.xy / resolution.xy;
float v = position.x;
vec3 colorA = vec3(1.0, 0.0, 0.0);
vec3 colorB = vec3(1.0, 1.0, 0.0);
vec3 color = mix(colorA, colorB, v);
gl_FragColor = vec4(color, 1.0);
}
