Explanations

To achive what we want, we need to move to another model : HSV.

HSV color model is made of three components :

  • hue : the tint from 0 to 260 degrees : 0 is red, 120 is green, 240 is blue, 360 is red and so on.
  • saturation : this is the amout of color : 0 is no color (gray), 1 is full color.
  • value : this is the amount of light : 0 is black and 1 is white

This model can represent all color as the RGB color model.

Note : in this code, hue range is not 0-360 but 0-6 to simplify computations.

#define PROCESSING_COLOR_SHADER

uniform vec2 resolution;

This function convert a HSV color to an RGB color. This code is optimized, implementation details are not covered in this chapter.

vec3 hsv2rgb(vec3 c)
{
    vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
    vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
    return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}

void main( void ) {

	vec2 position = gl_FragCoord.xy / resolution.xy;

  float v = position.x;

Let’s configure our two colors : red and blue but with the HSV model

  vec3 hsvA = vec3(0.0, 1.0, 1.0);
  vec3 hsvB = vec3(2.0 / 3.0, 1.0, 1.0);

Now we mix our two colors with gradient

  vec3 hsv = mix(hsvA, hsvB, v);

But we need to convert it back to RGB model since this is our screen color model.

  vec3 color = hsv2rgb(hsv);

	gl_FragColor = vec4(color, 1.0);
}

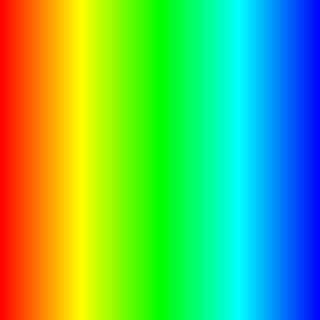

The result is what we expect, a nice gradient covering full spectrum from red to blue.

Full Code Source

#define PROCESSING_COLOR_SHADER

uniform vec2 resolution;

vec3 hsv2rgb(vec3 c)
{
    vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
    vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
    return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}

void main( void ) {

	vec2 position = gl_FragCoord.xy / resolution.xy;

  float v = position.x;

  vec3 hsvA = vec3(0.0, 1.0, 1.0);
  vec3 hsvB = vec3(2.0 / 3.0, 1.0, 1.0);

  vec3 hsv = mix(hsvA, hsvB, v);

  vec3 color = hsv2rgb(hsv);

	gl_FragColor = vec4(color, 1.0);
}
