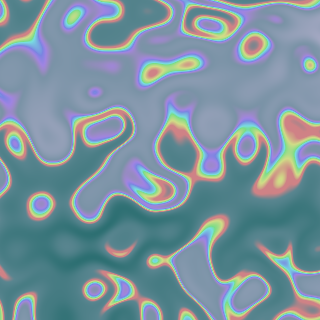

To see iridescence in action, let’s animate it with noise.
Noise generation is not covered in this chapter, see noise chapter for more details.
#define PROCESSING_COLOR_SHADER
uniform float time;
uniform vec2 resolution;
vec3 mod289(vec3 x)
{
return x - floor(x * (1.0 / 289.0)) * 289.0;
}
vec4 mod289(vec4 x)
{
return x - floor(x * (1.0 / 289.0)) * 289.0;
}
vec4 permute(vec4 x)
{
return mod289(((x*34.0)+1.0)*x);
}
vec4 taylorInvSqrt(vec4 r)
{
return 1.79284291400159 - 0.85373472095314 * r;
}
vec3 fade(vec3 t) {
return t*t*t*(t*(t*6.0-15.0)+10.0);
}
float cnoise(vec3 P)
{
vec3 Pi0 = floor(P); // Integer part for indexing
vec3 Pi1 = Pi0 + vec3(1.0); // Integer part + 1
Pi0 = mod289(Pi0);
Pi1 = mod289(Pi1);
vec3 Pf0 = fract(P); // Fractional part for interpolation
vec3 Pf1 = Pf0 - vec3(1.0); // Fractional part - 1.0
vec4 ix = vec4(Pi0.x, Pi1.x, Pi0.x, Pi1.x);
vec4 iy = vec4(Pi0.yy, Pi1.yy);
vec4 iz0 = Pi0.zzzz;
vec4 iz1 = Pi1.zzzz;
vec4 ixy = permute(permute(ix) + iy);
vec4 ixy0 = permute(ixy + iz0);
vec4 ixy1 = permute(ixy + iz1);
vec4 gx0 = ixy0 * (1.0 / 7.0);
vec4 gy0 = fract(floor(gx0) * (1.0 / 7.0)) - 0.5;
gx0 = fract(gx0);
vec4 gz0 = vec4(0.5) - abs(gx0) - abs(gy0);
vec4 sz0 = step(gz0, vec4(0.0));
gx0 -= sz0 * (step(0.0, gx0) - 0.5);
gy0 -= sz0 * (step(0.0, gy0) - 0.5);
vec4 gx1 = ixy1 * (1.0 / 7.0);
vec4 gy1 = fract(floor(gx1) * (1.0 / 7.0)) - 0.5;
gx1 = fract(gx1);
vec4 gz1 = vec4(0.5) - abs(gx1) - abs(gy1);
vec4 sz1 = step(gz1, vec4(0.0));
gx1 -= sz1 * (step(0.0, gx1) - 0.5);
gy1 -= sz1 * (step(0.0, gy1) - 0.5);
vec3 g000 = vec3(gx0.x,gy0.x,gz0.x);
vec3 g100 = vec3(gx0.y,gy0.y,gz0.y);
vec3 g010 = vec3(gx0.z,gy0.z,gz0.z);
vec3 g110 = vec3(gx0.w,gy0.w,gz0.w);
vec3 g001 = vec3(gx1.x,gy1.x,gz1.x);
vec3 g101 = vec3(gx1.y,gy1.y,gz1.y);
vec3 g011 = vec3(gx1.z,gy1.z,gz1.z);
vec3 g111 = vec3(gx1.w,gy1.w,gz1.w);
vec4 norm0 = taylorInvSqrt(vec4(dot(g000, g000), dot(g010, g010), dot(g100, g100), dot(g110, g110)));
g000 *= norm0.x;
g010 *= norm0.y;
g100 *= norm0.z;
g110 *= norm0.w;
vec4 norm1 = taylorInvSqrt(vec4(dot(g001, g001), dot(g011, g011), dot(g101, g101), dot(g111, g111)));
g001 *= norm1.x;
g011 *= norm1.y;
g101 *= norm1.z;
g111 *= norm1.w;
float n000 = dot(g000, Pf0);
float n100 = dot(g100, vec3(Pf1.x, Pf0.yz));
float n010 = dot(g010, vec3(Pf0.x, Pf1.y, Pf0.z));
float n110 = dot(g110, vec3(Pf1.xy, Pf0.z));
float n001 = dot(g001, vec3(Pf0.xy, Pf1.z));
float n101 = dot(g101, vec3(Pf1.x, Pf0.y, Pf1.z));
float n011 = dot(g011, vec3(Pf0.x, Pf1.yz));
float n111 = dot(g111, Pf1);
vec3 fade_xyz = fade(Pf0);
vec4 n_z = mix(vec4(n000, n100, n010, n110), vec4(n001, n101, n011, n111), fade_xyz.z);
vec2 n_yz = mix(n_z.xy, n_z.zw, fade_xyz.y);
float n_xyz = mix(n_yz.x, n_yz.y, fade_xyz.x);
return 2.2 * n_xyz;
}
vec4 wl_to_rgb(float wl)
{
vec3 color;
if(wl < 380.0)
{
color = vec3(1.0, 0.0, 1.0);
}
else if(wl<440.0)
{
color = vec3(-(wl - 440.0) / (440.0 - 380.0), 0.0, 1.0);
}
else if(wl<490.0)
{
color = vec3(0.0, (wl - 440.0) / (490.0 - 440.0), 1.0);
}
else if(wl<510.0)
{
color = vec3(0.0, 1.0, -(wl - 510.0) / (510.0 - 490.0));
}
else if(wl<580.0)
{
color = vec3((wl - 510.0) / (580.0 - 510.0), 1.0, 0.0);
}
else if(wl<645.0)
{
color = vec3(1.0, -(wl - 645.0) / (645.0 - 580.0), 0.0);
}
else
{
color = vec3(1.0, 0.0, 0.0);
}
float g = 0.80;
vec3 gamma = vec3(g,g,g);
color = pow(color, gamma);
float factor;
if((wl >= 380.0) && (wl<420.0)){
factor = (wl - 380.0) / (420.0 - 380.0);
}else if((wl >= 420.0) && (wl<701.0)){
factor = 1.0;
}else if((wl >= 701.0) && (wl<781.0)){
factor = (780.0 - wl) / (780.0 - 700.0);
}else{
factor = 0.0;
}
return vec4(color, factor);
}
vec4 frequency_to_rgb(float position)
{
float f = mix(385.0, 785.0, position);
float wavelen = 300000.0 / f;
return wl_to_rgb(wavelen);
}
void main( void ) {
vec2 position = gl_FragCoord.xy / resolution.xy;
We compute an animated FM noise (2 compound noise signals)
float vtime = time * 0.05;
float freq = 2.0;
float noiseFM = cnoise(vec3(position, vtime) * freq * 3.0);
float noise = cnoise(vec3(position, vtime + noiseFM) * freq) * 0.5 + 0.5;
Extract a gradient from that FM noise, we take just a thin band around mid noise value
float gradient = smoothstep(0.4, 0.6, noise);
We get our raindow color from gradient.
vec4 rainbow = frequency_to_rgb(gradient);
We remove half rainbow saturation.
vec3 irColor = mix(vec3(1.0, 1.0, 1.0), rainbow.rgb, 0.5);
We create a base color mixing two close green dark oil color with noise.
vec3 baseColor = mix(vec3(0.1, 0.4, 0.4), vec3(0.7, 0.7, 0.8), noise);
And then mix partially our base color with visible iridescence.
vec3 color = mix(baseColor, irColor, rainbow.a * 0.7);
gl_FragColor = vec4(color, 1.0);
}
