Explanations

So let’s change our color model and switch to a color model closest to physical phenomena : Iridescence.

Rainbow is a linear light frequency decomposition. So we need to work with light frequency instead of tint.

#define PROCESSING_COLOR_SHADER

uniform vec2 resolution;

This function convert a wave length to a color.

Wave length is the inverse of frequency so it will be easy to convert frequency to wave length latter.

vec4 wl_to_rgb(float wl)
{

We slice wave length in multiple parts and for each make a gradient. Those values are defined by physical laws

    vec3 color;
    if(wl < 380.0)
    {
      color = vec3(1.0, 0.0, 1.0);
    }
    else if(wl<440.0)
    {
      color = vec3(-(wl - 440.0) / (440.0 - 380.0), 0.0, 1.0);
    }
    else if(wl<490.0)
    {
      color = vec3(0.0, (wl - 440.0) / (490.0 - 440.0), 1.0);
    }
    else if(wl<510.0)
    {
      color = vec3(0.0, 1.0, -(wl - 510.0) / (510.0 - 490.0));
    }
    else if(wl<580.0)
    {
      color = vec3((wl - 510.0) / (580.0 - 510.0), 1.0, 0.0);
    }
    else if(wl<645.0)
    {
      color = vec3(1.0, -(wl - 645.0) / (645.0 - 580.0), 0.0);
    }
    else
    {
      color = vec3(1.0, 0.0, 0.0);
    }

Then color is scaled to gamma factor (again from physical laws)

    float g = 0.80;
    vec3 gamma = vec3(g,g,g);
    color = pow(color, gamma);

Now since human perseption is limited, we encode visible spectrum in alpha channel : infra red and ultra violet will have no opacity.

    float factor;
    if((wl >= 380.0) && (wl<420.0)){
        factor = (wl - 380.0) / (420.0 - 380.0);
    }else if((wl >= 420.0) && (wl<701.0)){
        factor = 1.0;
    }else if((wl >= 701.0) && (wl<781.0)){
        factor = (780.0 - wl) / (780.0 - 700.0);
    }else{
        factor = 0.0;
    }

    return vec4(color, factor);
}

Here is our final function scaling from 0-1 to frequencies and converting frequency to wave length

vec4 frequency_to_rgb(float position)
{

We mix from minimum to maximum human visible frequency

  float f = mix(385.0, 785.0, position);

Convert it to wave length : 300000 is light speed

  float wavelen = 300000.0 / f;

and then return back the final color

  return wl_to_rgb(wavelen);
}

void main( void ) {

  vec2 position = gl_FragCoord.xy / resolution.xy;

  float v = position.x;

So let’s test our rainbow.

  vec4 rainbow = frequency_to_rgb(v);

Since we have an alpha channel containing visible spectre, we mix rainbow color with a full white color (representing lightened clouds).

  vec3 color = mix(vec3(1.0, 1.0, 1.0), rainbow.rgb, rainbow.a);

  gl_FragColor = vec4(color, 1.0);
}

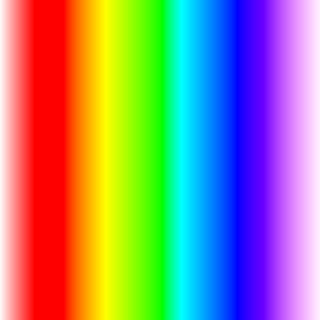

Hopefully, the result looks good.

Full Code Source

#define PROCESSING_COLOR_SHADER

uniform vec2 resolution;

vec4 wl_to_rgb(float wl)
{

    vec3 color;
    if(wl < 380.0)
    {
      color = vec3(1.0, 0.0, 1.0);
    }
    else if(wl<440.0)
    {
      color = vec3(-(wl - 440.0) / (440.0 - 380.0), 0.0, 1.0);
    }
    else if(wl<490.0)
    {
      color = vec3(0.0, (wl - 440.0) / (490.0 - 440.0), 1.0);
    }
    else if(wl<510.0)
    {
      color = vec3(0.0, 1.0, -(wl - 510.0) / (510.0 - 490.0));
    }
    else if(wl<580.0)
    {
      color = vec3((wl - 510.0) / (580.0 - 510.0), 1.0, 0.0);
    }
    else if(wl<645.0)
    {
      color = vec3(1.0, -(wl - 645.0) / (645.0 - 580.0), 0.0);
    }
    else
    {
      color = vec3(1.0, 0.0, 0.0);
    }

    float g = 0.80;
    vec3 gamma = vec3(g,g,g);
    color = pow(color, gamma);

    float factor;
    if((wl >= 380.0) && (wl<420.0)){
        factor = (wl - 380.0) / (420.0 - 380.0);
    }else if((wl >= 420.0) && (wl<701.0)){
        factor = 1.0;
    }else if((wl >= 701.0) && (wl<781.0)){
        factor = (780.0 - wl) / (780.0 - 700.0);
    }else{
        factor = 0.0;
    }

    return vec4(color, factor);
}

vec4 frequency_to_rgb(float position)
{
  float f = mix(385.0, 785.0, position);

  float wavelen = 300000.0 / f;

  return wl_to_rgb(wavelen);
}

void main( void ) {

  vec2 position = gl_FragCoord.xy / resolution.xy;

  float v = position.x;

  vec4 rainbow = frequency_to_rgb(v);

  vec3 color = mix(vec3(1.0, 1.0, 1.0), rainbow.rgb, rainbow.a);

  gl_FragColor = vec4(color, 1.0);
}
